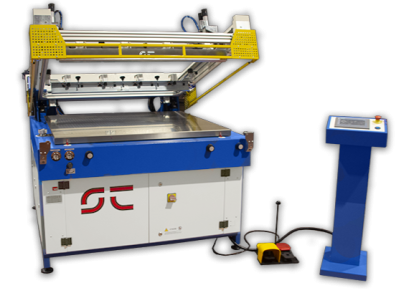

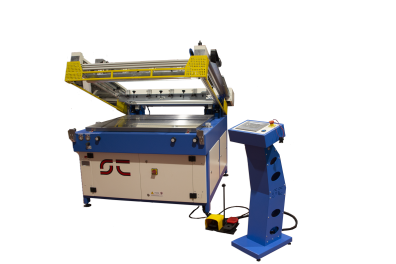

S2 - AUTOMATIC Clamshell Screen Printer

The S2-700 is an automatic book screen printing machine, ideal for printing on all rigid and flexible materials.

Equipped with various adjustments and devices, such as:

-Pneumatic squeegee-scraper exchange
-Regulation of the inclination of the racle and of the manual scraper
-Height adjustable frame holder bars for out of contact
-Pneumatic frame detachment with manual adjustment
-Pneumatic frame locking
-3 operating cycles manual, semi and automatic
-Independent print speed adjustment via touch display
- Suction plate with micrometric adjustment and magnetic or manual locking
- Front and side safety bar
-Adjustment of the print stroke via touch display
-Automatic cycle start timing and return start for the cover
-Increasing or decreasing digital piece counter

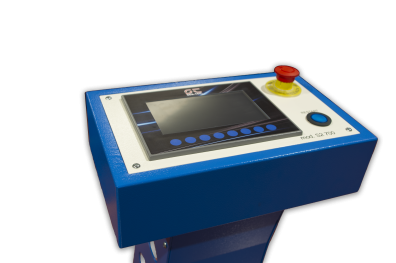

-Touch display with simple and intuitive menu
-Possibility of Industry 4.0
